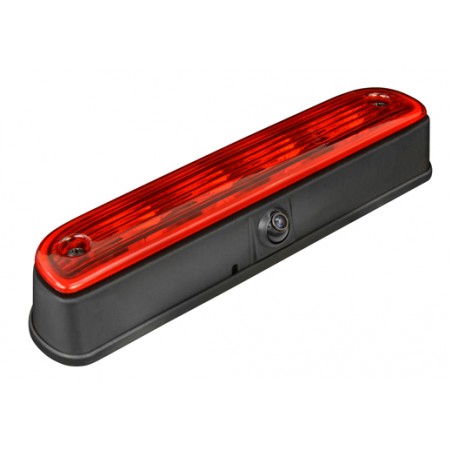

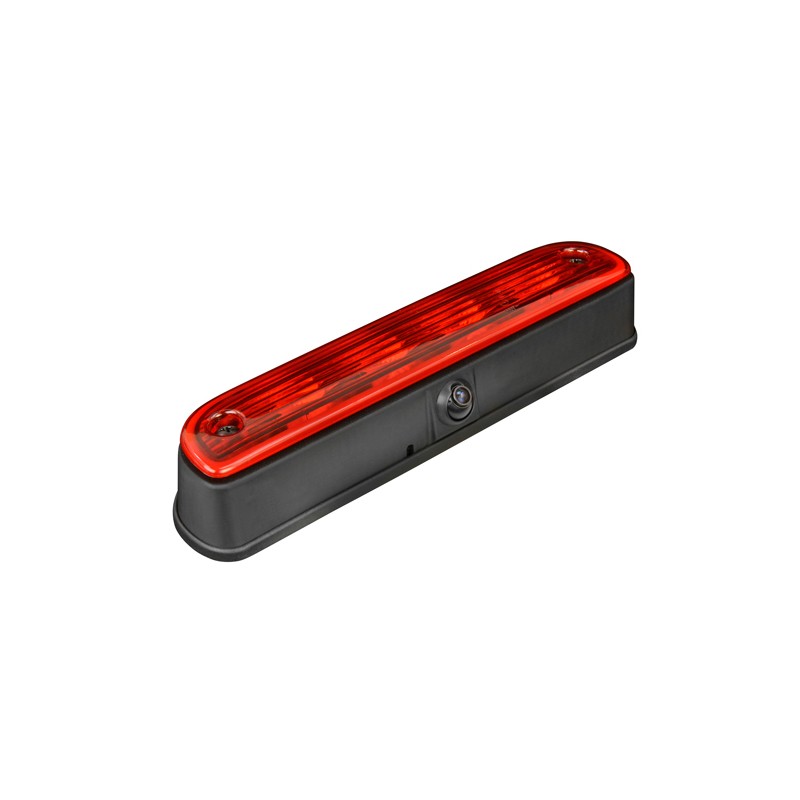

ZENEC ZE-RCE3701 – FIAT Specific Rear View Camera
229,00 CHF
Bruttopreis
ZENEC ZE-RCE3701
| Fiat Ducato III | 250/251 | as of 2006 |
| Citroen Jumper II | 250/250D/250L | as of 2006 |
| Peugeot Boxer | 250/251 | as of 2006 |
- Image device: 1/4” / 6.4 mm Aptina ASX340AT CMOS sensor
- Lens focal length: f 1.2
- TV system: NTSC / 60 fps
- Viewing angle: 150° (D) x 130° (H) x 85° (V)
- Native sensor resolution: 720 (H) x 480 (V) pixels
- Resolution of video-out: > 420 TV lines
- Frame rate: 60 fields/sec.
- Signal to noise ratio: > 48 dB
- Light sensitivity: 0.3 Lux
- Video output: 1.0 Vp-p, 75 ohms CVBS
- White balance: Auto
- backlight compensation: Auto
- Gamma correction: 0.45
- Gain control: Auto
- Sync system: Auto
- Power supply: DC 6 - 24 V
- Current consumption: 40 mA (DC12V) / ¤ 480 mW
- IP protection rating: IP69K
- Operating temperature: -30° C ~ +75°C, RH 95 % max
ZE-RCE3701
chat
Kommentare (0)
Aktuell keine Kunden-Kommentare
ZENEC ZE-RCE3701
| Fiat Ducato III | 250/251 | as of 2006 |
| Citroen Jumper II | 250/250D/250L | as of 2006 |
| Peugeot Boxer | 250/251 | as of 2006 |
