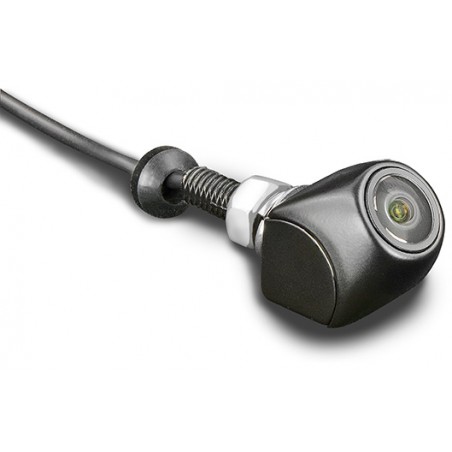

ZENEC ZE-RVC45DT
The ZENEC ZE-RVC45DT rear view camera model was developed for universal use, allowing retrofitting of a great variety of vehicles due to its extremely compact housing shape. The picture can be outputted as normal or mirror image, for mounting and utilization of this model as front- and as rear view camera. Besides, the ZE-RVC45DT offers a large horizontal viewing angle of 140° for good overview.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket and the ZENEC E>GO product line up, including ZENEC 2-DIN infotainers and naviceivers.
Image device | 0.25" / 6.4 mm Aptina ASX340AT CMOS sensor |
Lens focal length | f1.5 |
TV system | NTSC / 60 fps |
Viewing angle | 180° diagonal, 140° horizontal, 90° vertical |
Native sensor resolution | 680 x 512 pixels |
Resolution of video-out | 420 TV lines |
Frame rate | 60 fields/sec. |
Signal to Noise ratio | > 48 dB |
Light sensitivity | 0.5 lux/F1.2/50IRE |
Video output | 1.0 Vp–p, 75 ohms, CVBS |
White balance | auto |
Backlight compensation | auto |
Gamma correction | 0.45 |
Gain control | auto |
Sync system | auto |
Power supply | DC 6-16 volts |
Current consumption | 60 mA (DC12V) / ≤ 720 mW |
IP protection rating | IP69K |
