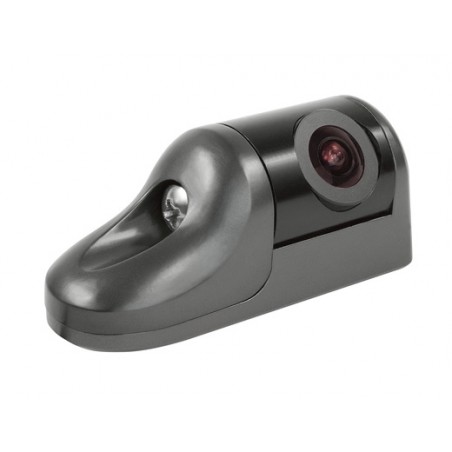

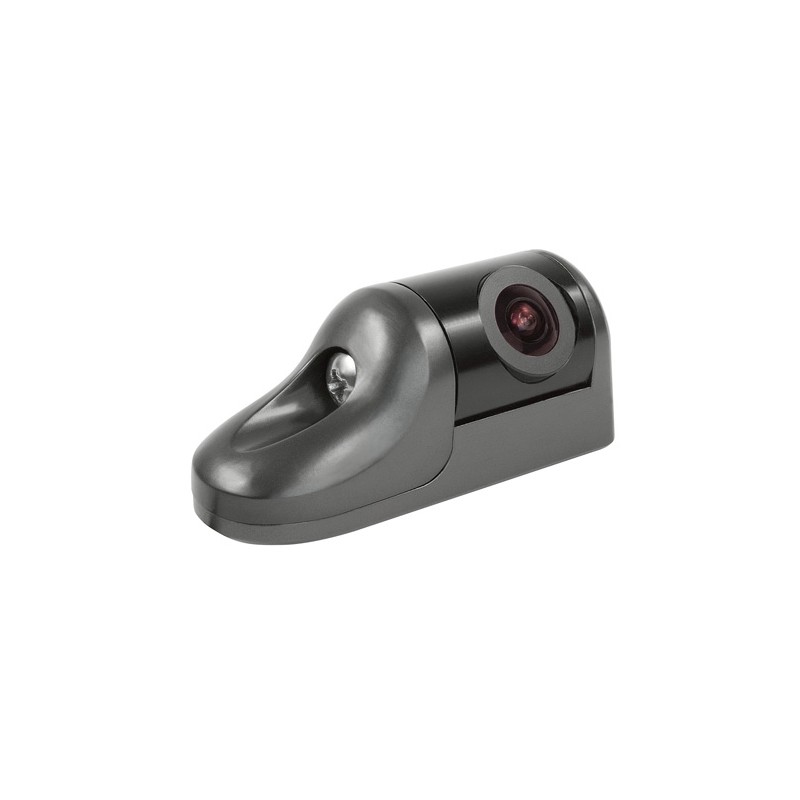

ZENEC ZE-RVC80MT
Due to its compact size the ZE-RVC80MT rear view camera is suitable to be installed at the upper edge of the license plate or below the rear bumper, depending on car model or customer preferences. The connection cable of the camera can often be routed alongside the license plate illumination wires – allowing for a quick and trouble free installation process. The high quality CMOS camera sensor also offers an extended temperature operating range, a waterproof lens assembly (IP68) and housing, made of durable die cast aluminium.
Image device | 0.25" CMOS Sensor |
TV system | NTSC |
Viewing angle | 140° horizontal |
Sensor resolution | 720 x 480 pixels |
Resolution of video-out | 480 TV lines |
Minimum illumination | 0.3 lux |
Video output | 1 Vp-p, 75 ohms |
White balance | Auto |
Power supply | DC 12 Volt typ. |
Current consumption | 60 mA max. |
IP protection rating | IP68 water and dust protected |
Operating temperature | 30°C to +75°C |
