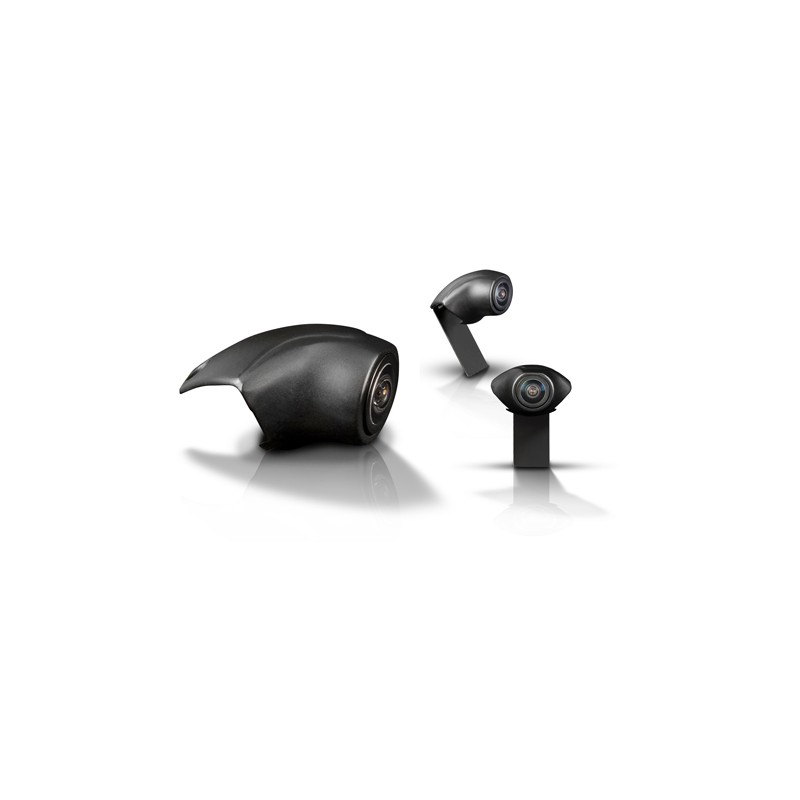

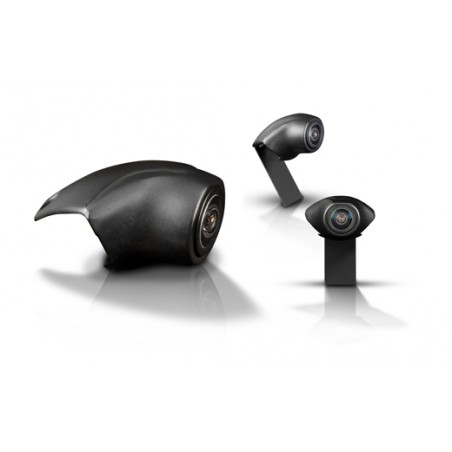

ZENEC ZE-RVC55LP
The ZENEC license plate cam model ZE-RVC55LP was developed for use on almost any license plate holder, allowing retrofitting of a great variety of vehicles. The picture can be outputted as normal or mirror image, for mounting and utilization of this model as front or as rear view camera.
With two different mounting options, the ZE-RVC55LP is ideal for use on almost any vehicle.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket and the ZENEC E>GO product line up, including ZENEC 2-DIN infotainers and naviceivers.
Image device | 1/4” / 6.4 mm Aptina ASX340 CMOS sensor |
Lens focal length | F 1.5 |
TV system | NTSC / 60 Hz |
View angles | 180°(D) x 140°(H) x 90°(V) |
Native sensor resolution | 680 (H) x 512 (V) pixels |
Resolution of video-out | > 420 TV lines |
Frame rate | 60 fields/sec. |
Signal to noise ratio | > 48 dB |
Light sensitivity | 0.5 Lux/F1.2/50IRE |
Video output | 1.0 Vp-p, 75 ohms CVBS |
White balance | Auto |
Backlight compensation | Auto |
Gamma correction | 0.45 |
Gain control | Auto |
Sync system | Auto |
Power supply | DC 6 - 16V |
Current consumption | 40mA (DC12V) / ≤ 480mW |
IP protection rating | IP69K |
Operating temperature | -30°C~+75°C |
Dimensions | screwed 20 x 32 x 32 mm (H x W x D), glued 37 x 32 x 32 mm (H x W x D) |
