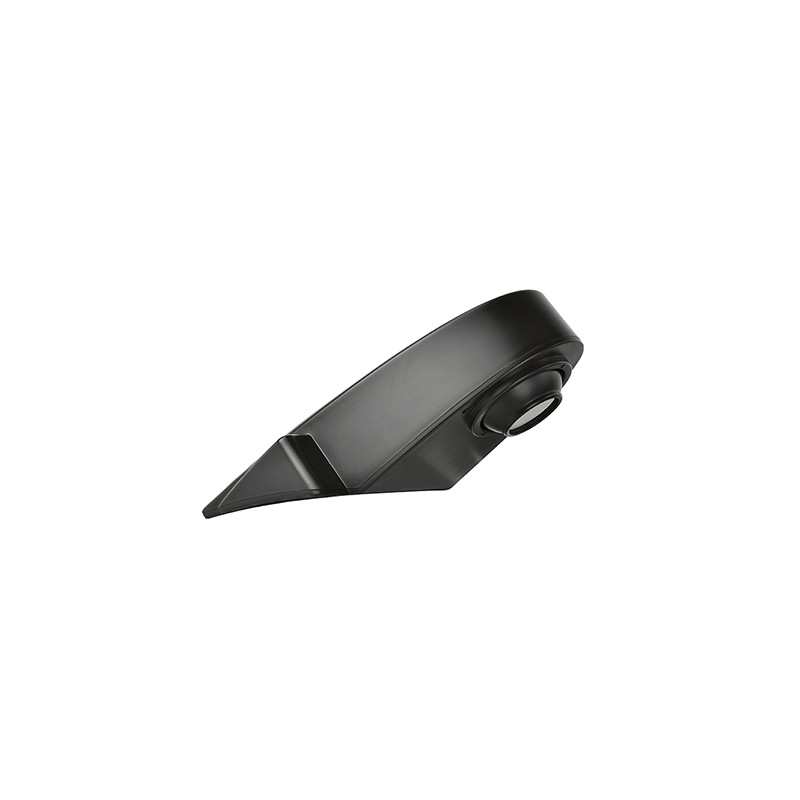

ZENEC ZE-RCE4605 – CCD Rear View Camera for Vans
249,00 CHF
Bruttopreis
ZENEC ZE-RCE4605 – CCD Rear View Camera for Vans
The compact, high resolution rear view camera is equipped with a high quality CCD camera sensor. With a horizontal viewing angle of 120°, this camera offers a very good view when maneuvering. Night vision IR LEDs ensure excellent vision, even in the dark.
| Image device | 0.25“/6.4 mm Sharp CCD sensor |
| Lens focal length | F 2.5 |
| TV system | NTSC / 60 fps |
| View angle | 120° horizontal |
| Native sensor resolution | 510 x 492 pixels |
| Resolution of video-out | > 420 TV lines |
| Signal to noise ratio | > 48 dB |
| Light sensitivity | 0 Lux (IR LED’s) |
| Video output | 1.0 Vp-p, 75 ohms |
| White balance | Auto |
| Gain control | Auto |
| Sync system | Auto |
| Power supply | DC 12V |
| Current consumption | 60mA |
| IP protection rating | IP67 |
| Operating temperature | -20°C~+70°C, RH 95% max. |
| Dimensions (HxWxD) | 23 x 19 x 30 mm |
| Weight | 200 g |
